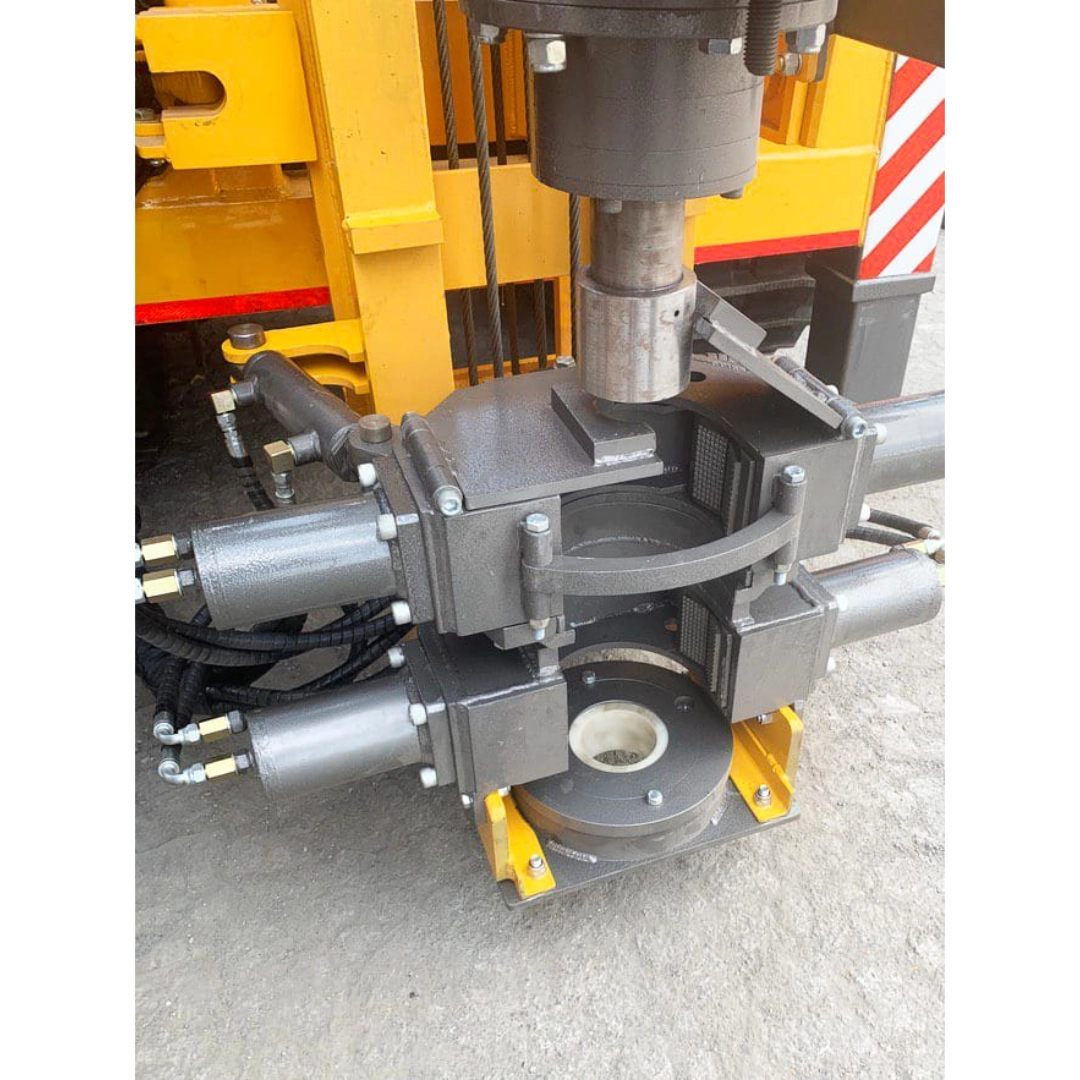

PRD-Dual Breakout Rod Clamp System
- Bottom clamp holds the rod stationary.
- Top clamp grips the rod and rotates to break the tool joint.2 hydraulic rams on the top and bottom breaker.
- Bottom rod guide to keep the rods centralised while drilling.
- Top folding rod guides also used for rod spanner if required.
This unit is field tested and proven a very reliable, safe and cost effective to use.
| Clamp Force |
Breakup Force |
Makeup Force |
| 8,666 Kg |
545 kg |
534 kg |
