Irontech 242 (Ref No 5367)

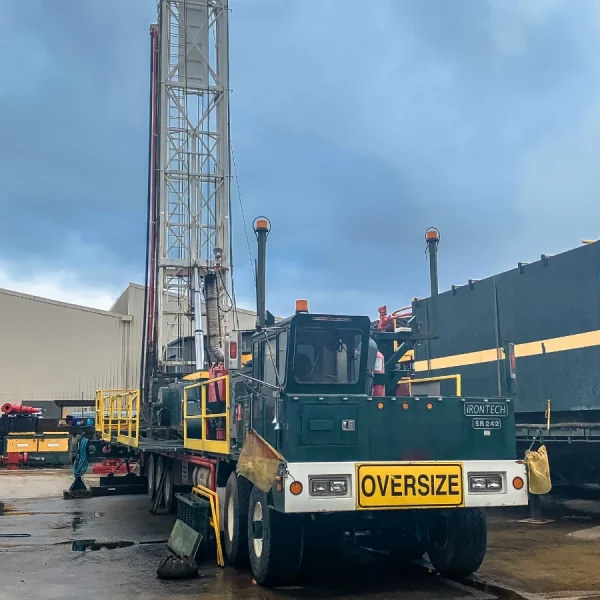

Irontech SR242

18” x 45# x 43’ 5-axle rig carrier c/w front and rear bumpers, bulkhead, wiring, air & hydraulic systems
20,000# ABS braking system equipped tandem front steering axels c/w Reyco suspension,
Unimount wheels, 445/65R22.5 tires and steering linkage
Rockwell SSHD 46,000# ABS braking system equipped tridem tri-drive rear axels c/w walking beam suspension, Unimount wheels and 1100 x R22.5 tyres
1-man cab, Right Hand Drive c/w steering and front access panel, all wiring, gauges, fan, seat, windshield wiper and washer, sun visor, dual outside rear-view mirrors and safety glass
Waterous Detroit Diesel 14.0L Series 60 Engine rated 375 HP at 2100 RPM c/w all standard service rig package components including radiator, fan, exhaust, control panel, alternator, air compressor, Fuel Pro, Oil Spinner and filter system.
Allison Transmission Model 4700DB OFS c/w filter package, gauge package, torque converter, 2-position output disconnect and flanges

Denison 53gpm tandem hydraulic pump

Drill Line spool carrier with 1500 ft x 7/8” Drilling Line
New Irontech 42×10 Chain Driven Draw works: Rated 225,000 lbs
– 42” x 10” Main Drum
– 38” x 8” Sand line Drum
– 7/8” Wire line grooving
– Right Angle Gear Box
Auxiliary Disc Brake c/w 47” x 2 ¾” ventilated disc, (2) air operated callipers, H2X control air valve and steel mesh guard
Crown saver plumbed to disc brake
1ea 3-Stage hydraulic raising ram
2ea 5,000# PL5 rig winches c/w winch line
4ea Hydraulic levelling jacks
1ea 150-Gallon aluminium fuel tank
1ea x 250-Gallon hydraulic tank c/w dual suction filters.
Deadline anchor
Walkways c/w handrails and kick plates on both sides of carrier, (2) sets of flip-up stairs and (1) set of aluminium removable stairs.
Folding working floor fabricated of sturdy lightweight material c/w adjustable height slider and winch line pulley
12-Volt electrical system

Driller’s control panel c/w crown saver and throttle control

ockouts and hydraulic valve control station mounted at operator’s position at rear of rig
Weight indicator – Martin Decker Clipper equivalent
Hinged working beam c/w below bumper carrying mounts and A-Leg mounted handling arm to standard dimensions
New 79’ Irontech 160,000 lbs Telescoping mast c/w nylon 4-sheave crown and winch sheaves, block cradle, flag pole, 2” stand pipe, line hooks, steel hydraulic lines for 3 – stage hydraulic raising ram and engineer’s certification and inspection plaque
(2) Hydraulically extended 5’ freestanding outrigger arms c/w (2) hydraulic rams, (2) hydraulic levelling jacks, (1) 4-valve hydraulic bank, (2) levelling jack stands.

Approximate Weights: Front: 15,000 kg, Rear: 23,500 kg.
