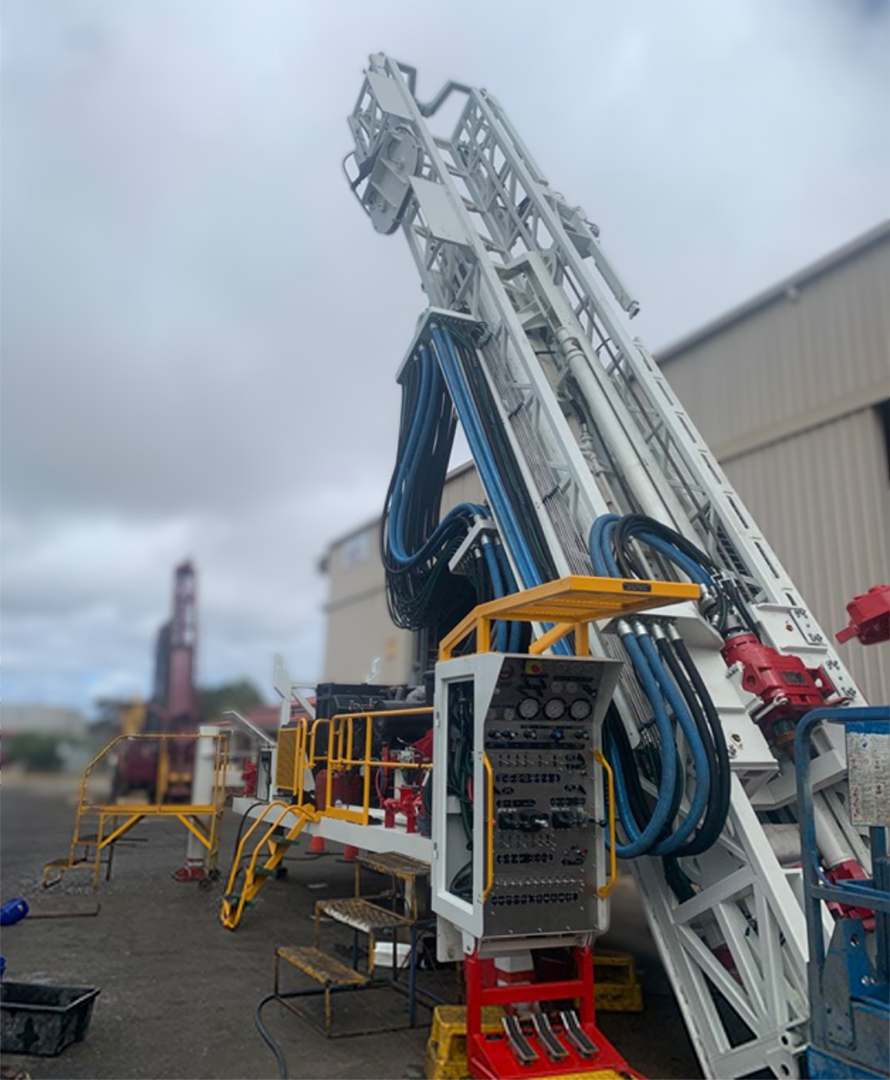

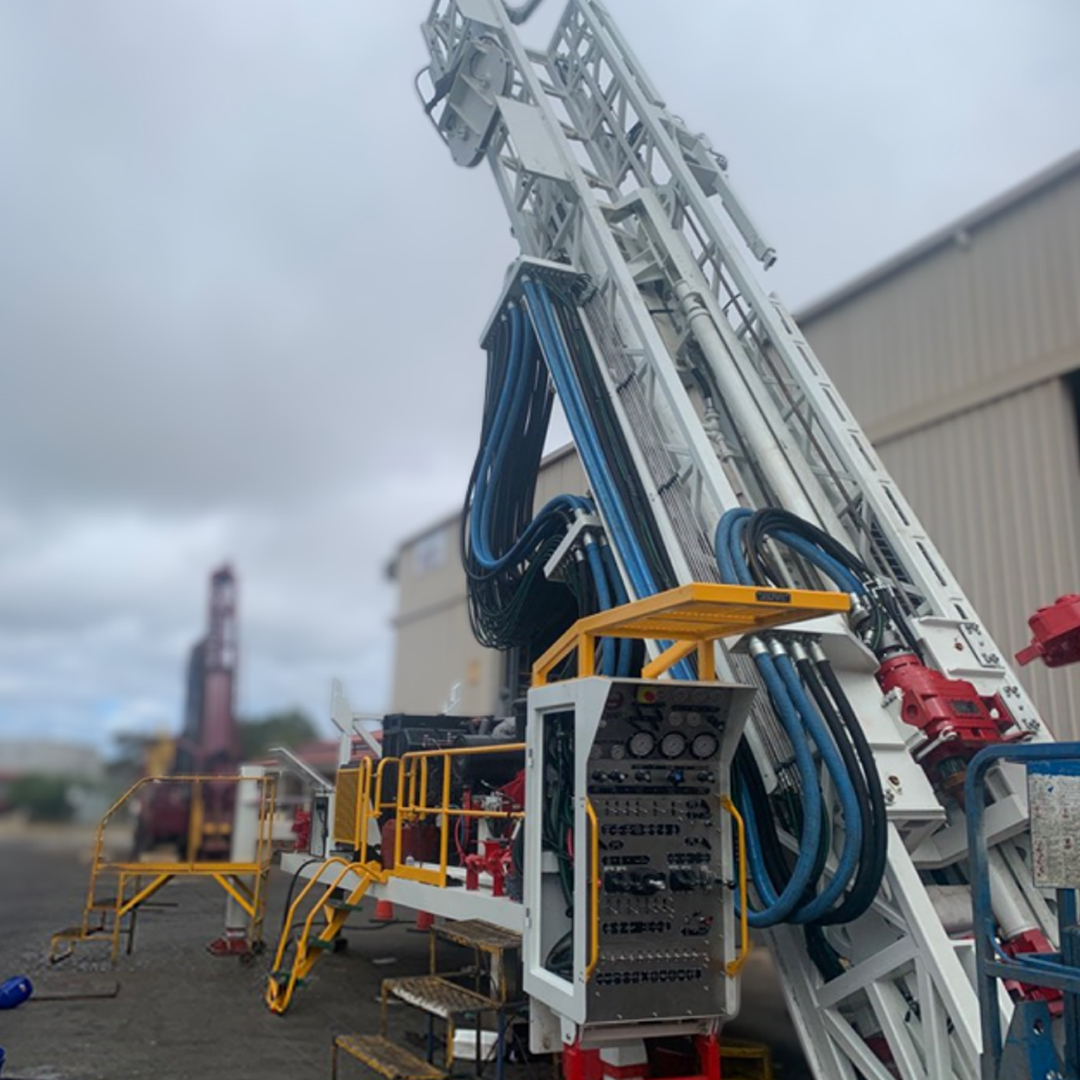

Hydco 130 API

Built in 2021 commissioned 2022 – Rig is new (commissioning only).

Designed for oil/gas, CBM, Core drilling, gas drainage, geo thermal an water well drilling.

Rated up to 3,000m Core, 2,850m 6-1/8” SIS, 2,100m 8-1/2” VPW & water

130,000 lb holdback
45,000 lb pulldown
25t R3 main winch
10.2m stroke (rack back head system)
400hp Cummins engine (air start)
3” 3k king swivel
AirDrill floating sub
Auto rod handling and rod breakout systems

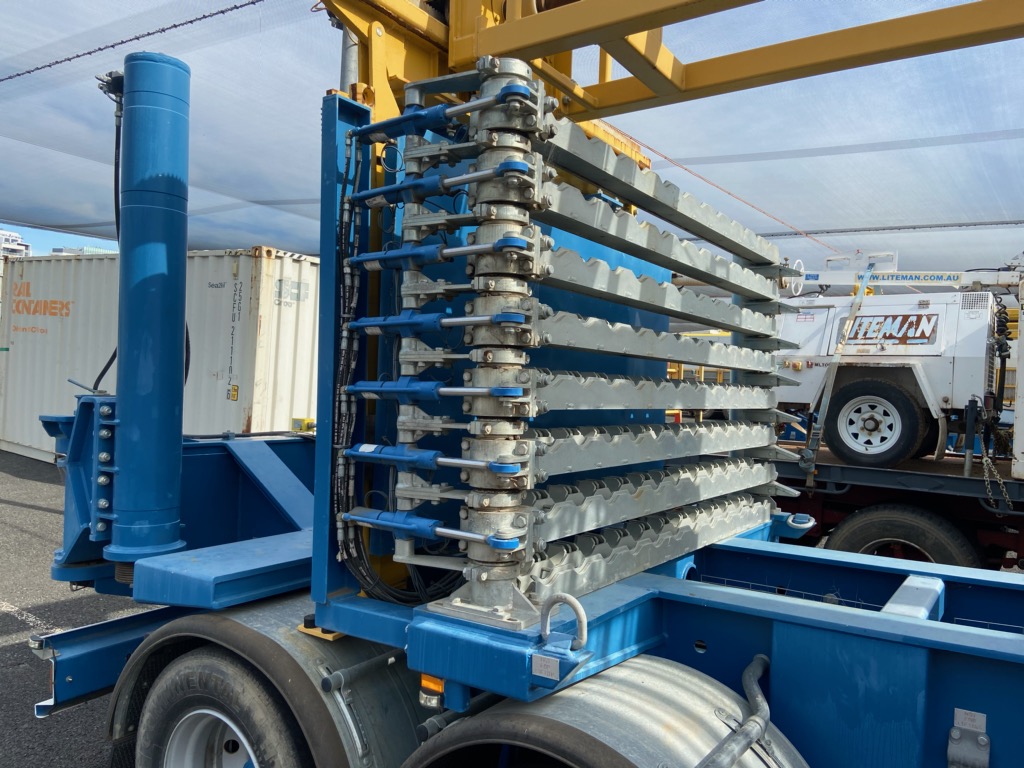

Foremost 3000 side load rod handling system with remotes, racking and presenters
Injection pump – FMC 141-LPM @ 1000psi
Mast angle – (45deg to 90deg angle) capable
2.7m dump mast
2.5m under table (without a sub-base)

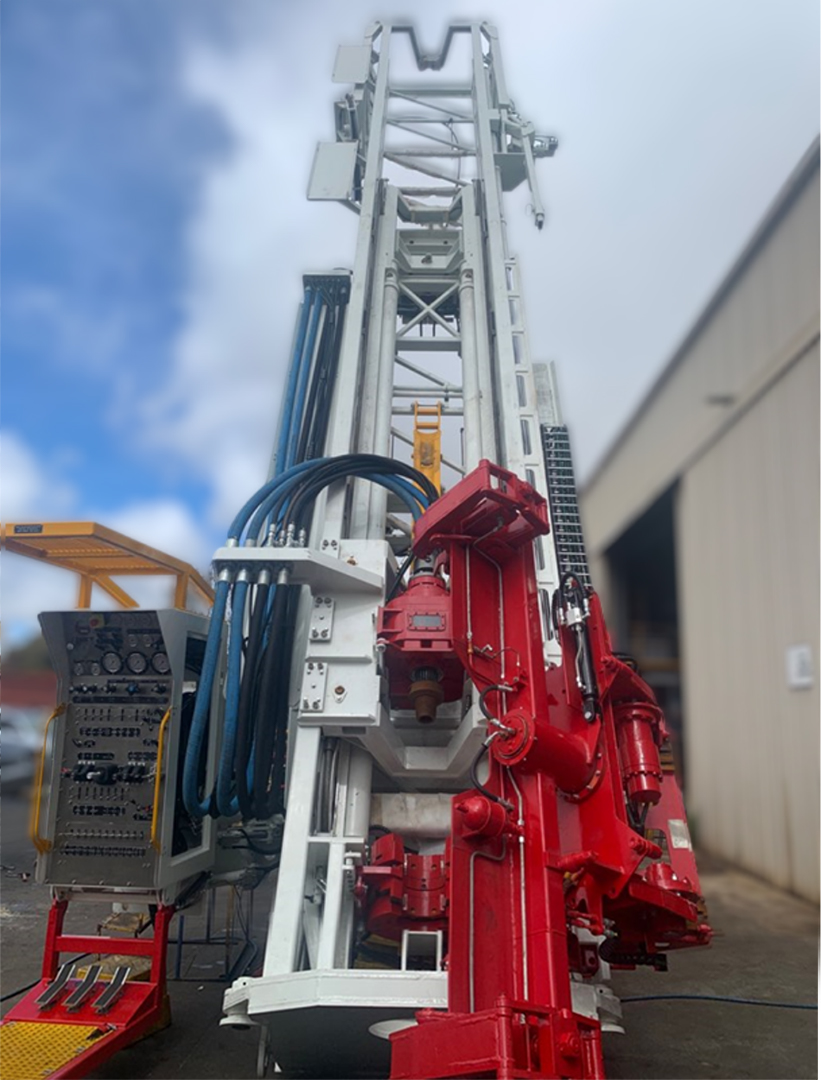

2 speed high torque rotation head

High speed – 8,500ft lb (60 to 320 rpm)

Low speed – 17,500ft lb (10 to 145 rpm)

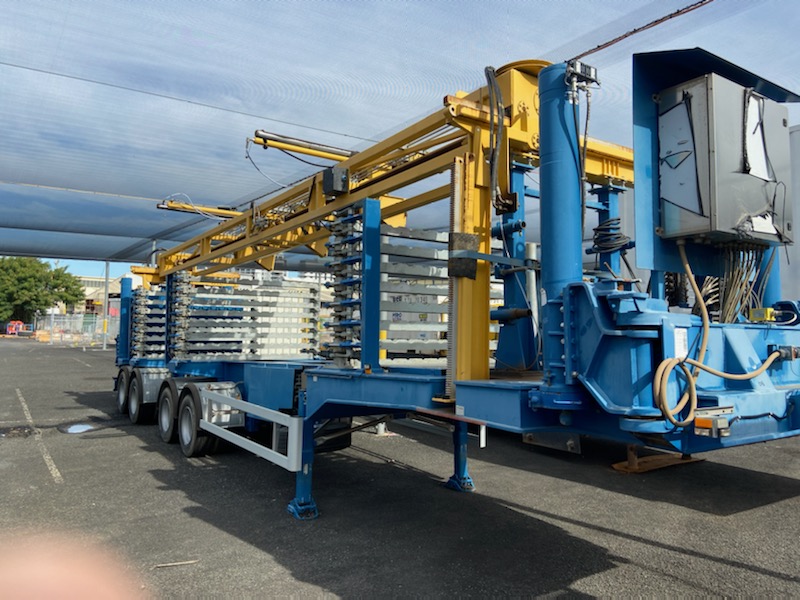

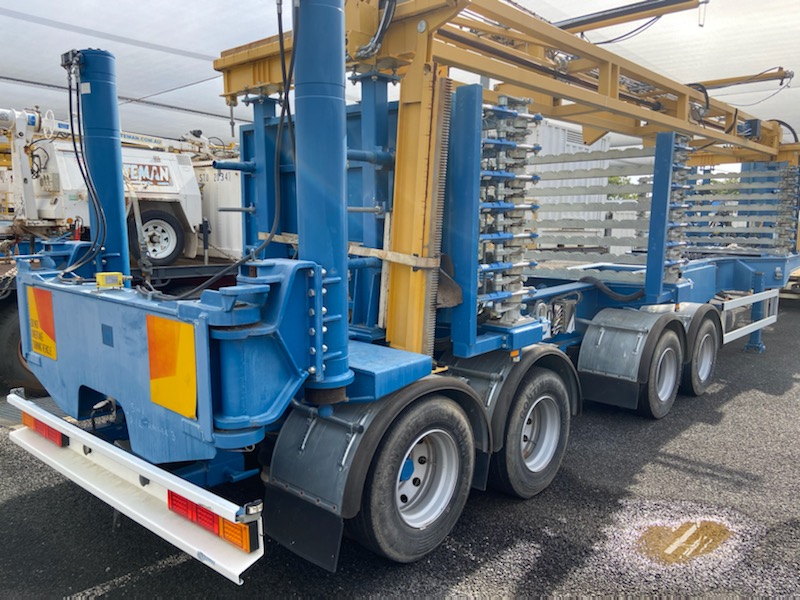

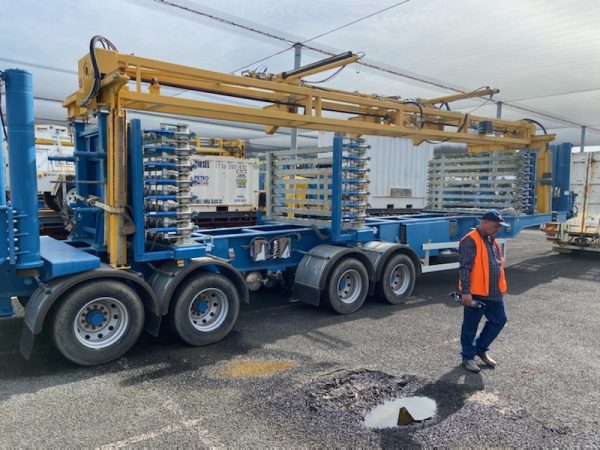

Rig is currently unmounted. A suitable Drillmech quad axle trailer is available.

Trailers are made in Italy 13.5m x 2.4 x 3,95 high. 46t GVM / 18.9T Tare. 3 units available at extra cost.

1 x 40′ tri axle trailer with workshop and lubricant racks. Workshop, rig hand tools. Critical spares included.

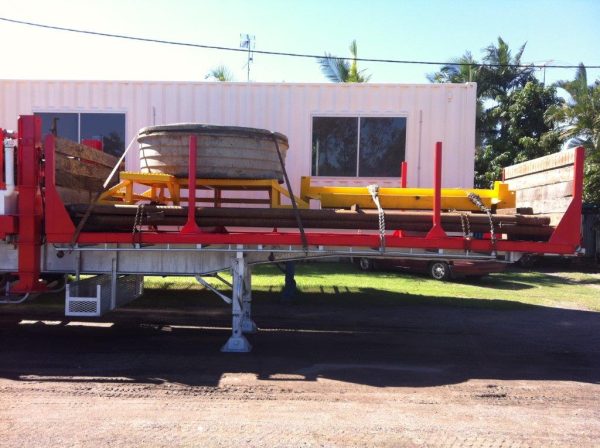

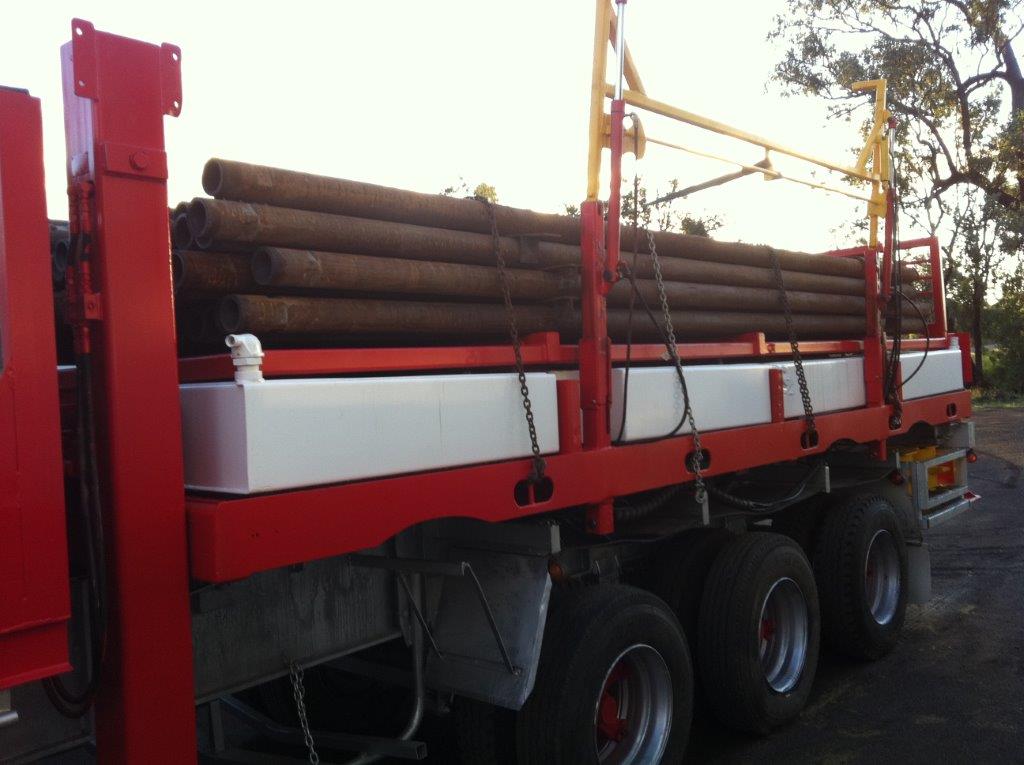

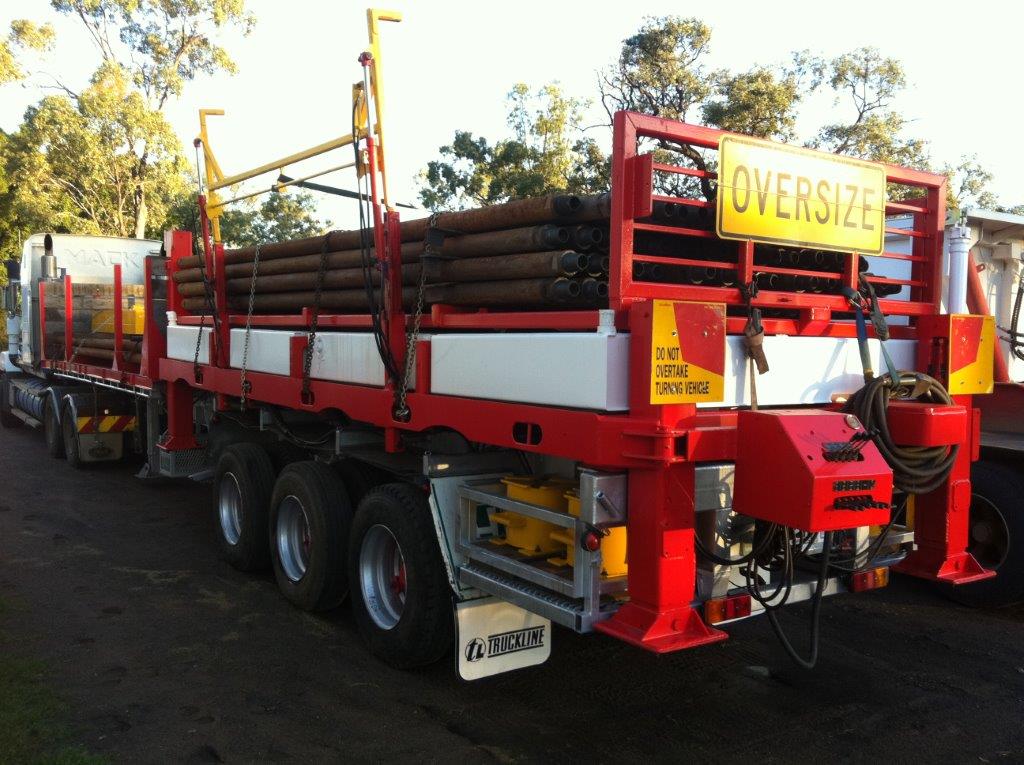

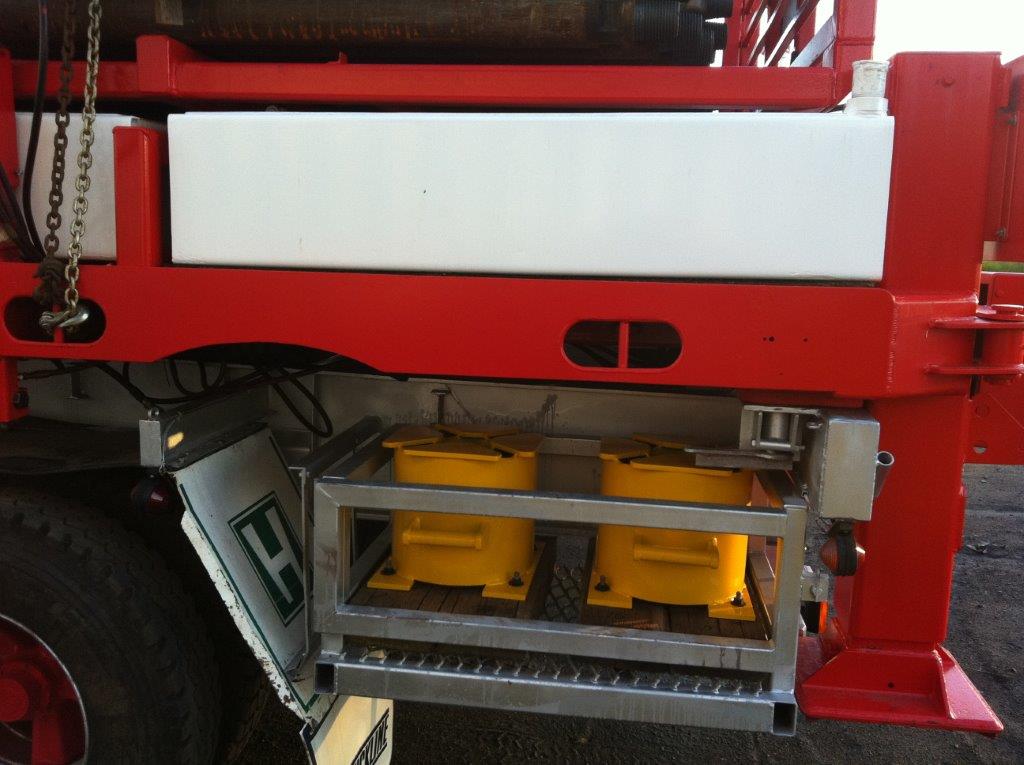

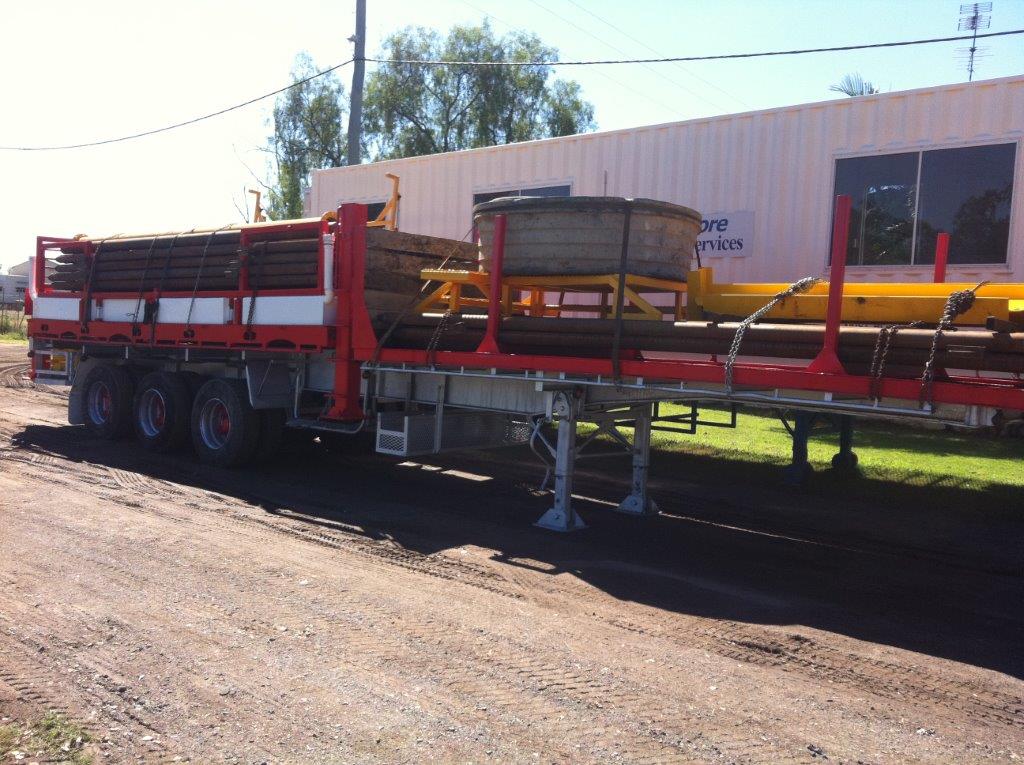

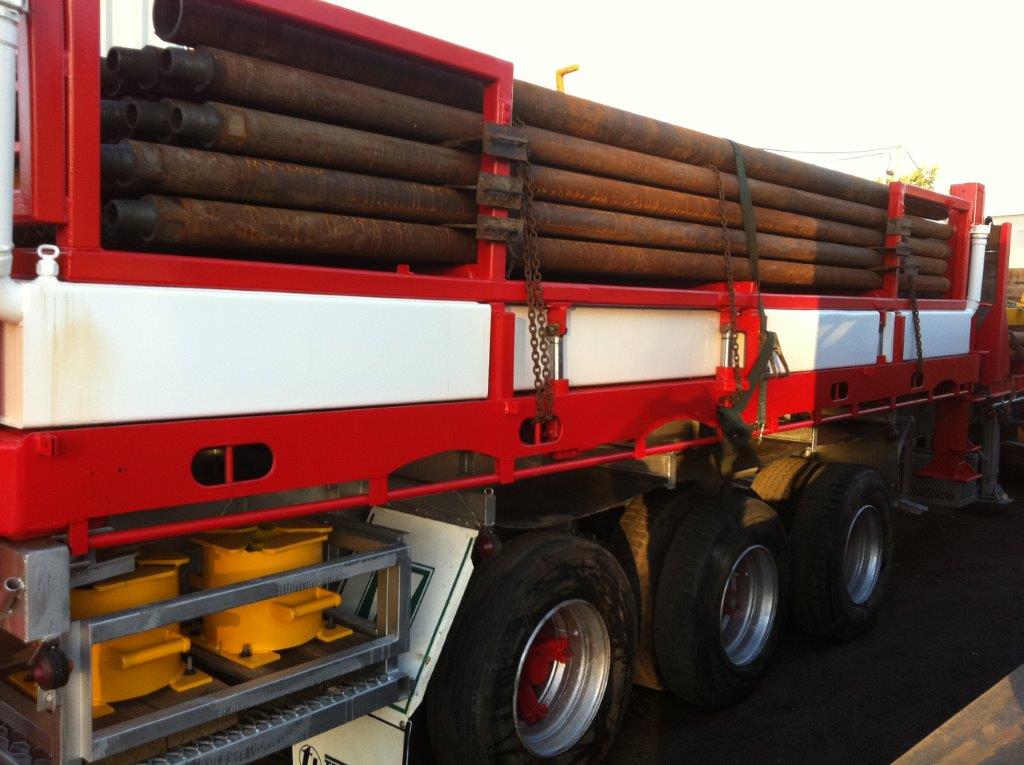

1 x 41′ tri axle drop deck trailer with 6500 diesel tanks, 6.8m sloop and rod loader system. Hydraulic jack up.
Front deck is set up for drill pipe and storage.
Set up to carry 540m x 4-1/2″ x 6m over the back and 756m x 4-1/2″ x 6m over the front.
