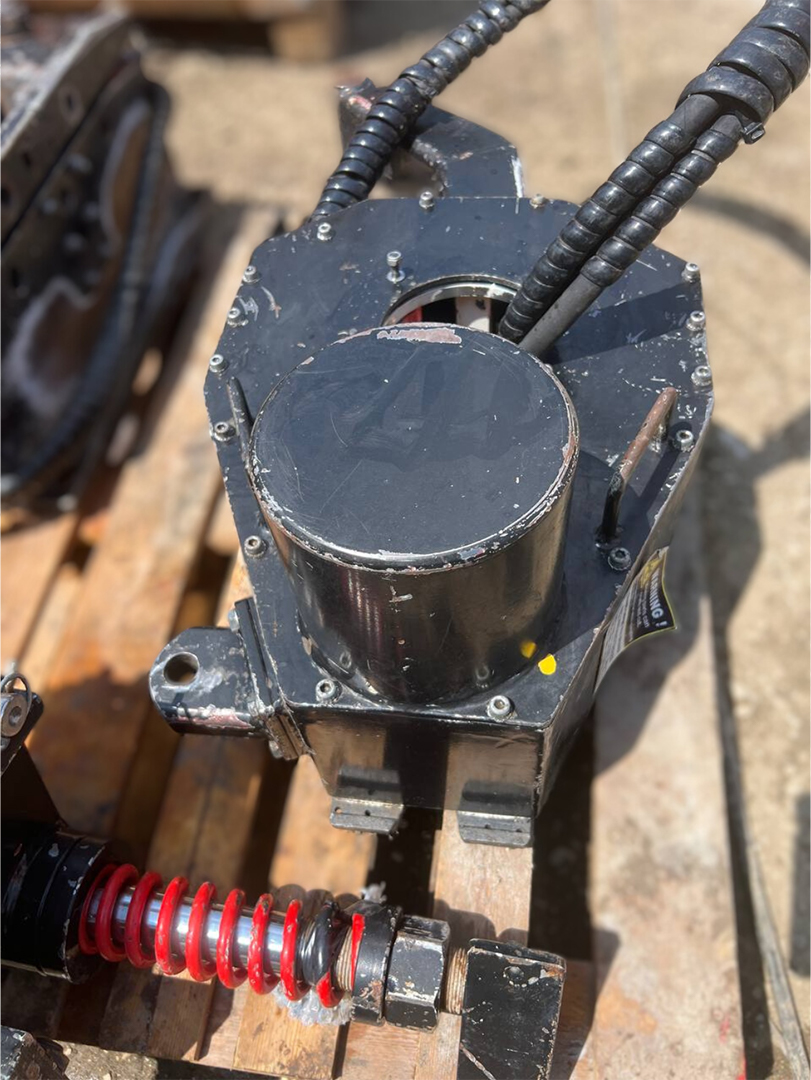

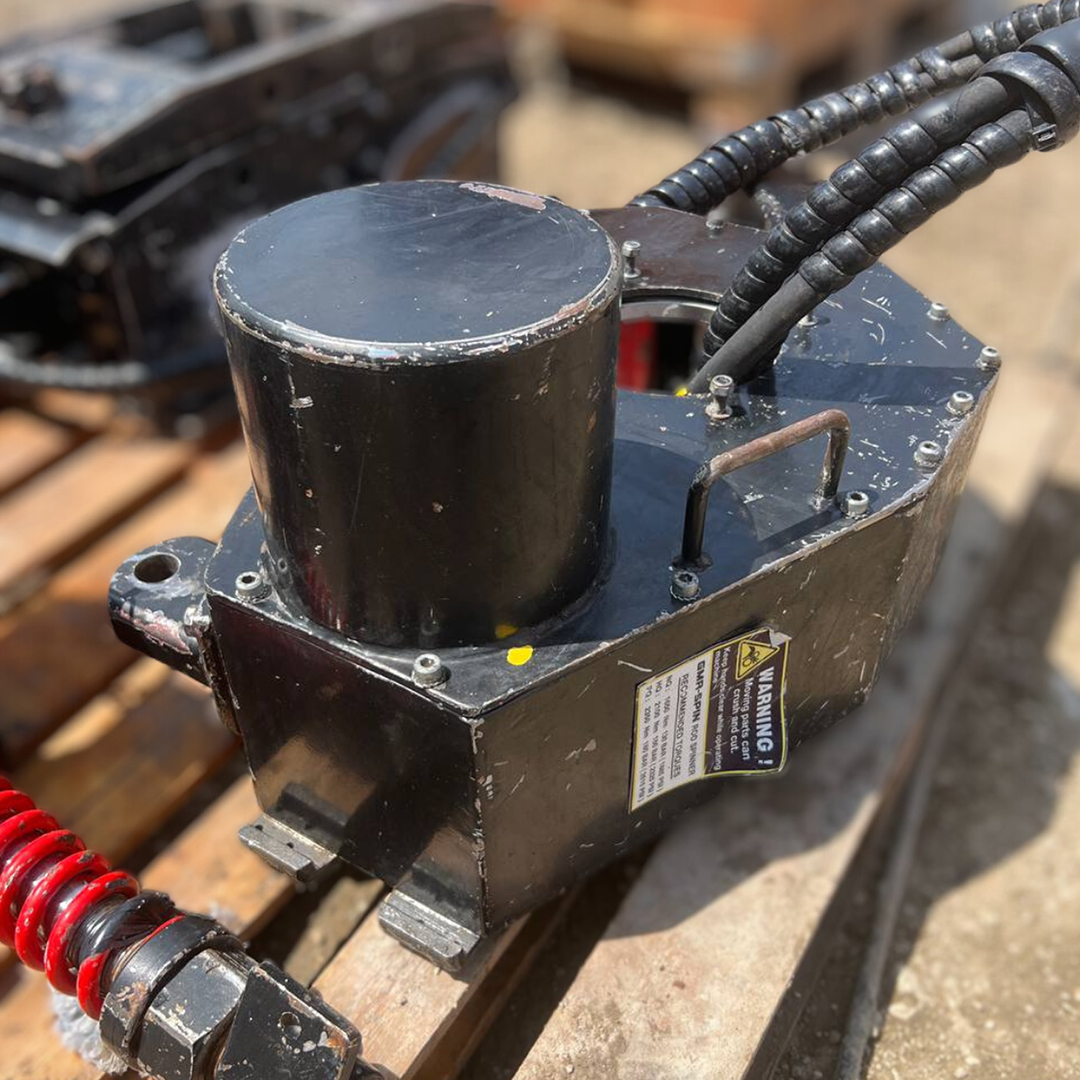

Gemsa GMR-Spinn rod spinner (Ref No 5689)

Gemsa GMR Spinn

Powerful & Secure rod handling

Gemsa GMR-Spinn  rod spinner is a compact tool capable of making up and breaking out of drill rod threads during rod tripping operations. Designed to handle BQ, NQ, HQ, PQ, PWT rods and NW, HW casings without replacing jaws, this tool offers optimum productivity to the user and save time of the drill crew by fast and secure make up and break out operations.

Gemsa’s GMR-Spinn
General use:                   Mineral exploration drilling rigs
Rig Type:                         MP/ Core drill designed to fit a wide range of core drills
Hydraulic:                        Delivered from the rigs hydraulics
Model Type:                    Chuck type floating rod spinner
Control:                           Adjustable torque control
Max Torque Make up:    2,100Nm (1,555 lb/ft)
Max Torque Breakout:   3,200Nm (2,220 lb/ft)
Capacity:                        BQ, NQ, HQ, PQ, NW & HW casing

Safe work environment

• Reduces the use of stillson and hand tools that are acknowledged as consistent cause of injury and risks resulting from operator or offsider fatigue.
• Reduces potential for  Carpal Tunnel Syndrome injury caused by screwing of rods manually.
• Provides a consistent pre-torque joint in the drill string, extend drill rod thread life.
