Diesel Portables

ELGi manufactures a complete range of air compressors that include oil lubricated and oil-free electric powered rotary screw compressors, diesel powered portable screw compressors, oil lubricated, and oil-free reciprocating compressors, and centrifugal compressors, dryers, air receiver tank and other air accessories.

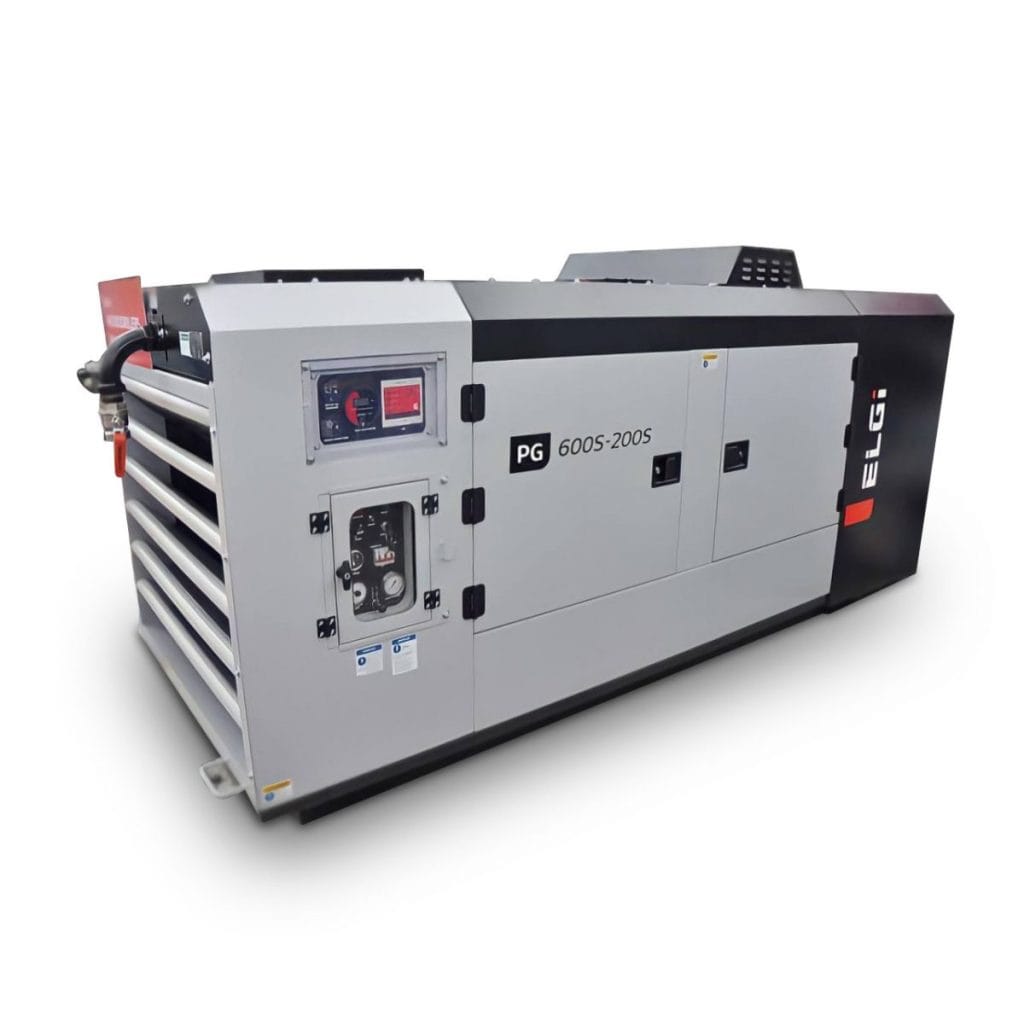

ELGi Compressor
600 cfm – 230 psi Silenced Unit

– Duty Cycle continuous drilling
– Free air delivery
– Maximum pressure 230psi
– Idling pressure 220 psi
– Engine make CUMMINS
– Engine model 6CTA 8.3 C
– Engine power output 260 HP
– Rated operated speed 2200 rpm
– Idle speed 1250 rpm
– Fuel consumption 52 Ltr/hr
– Engine lube oil capacity 22 Ltr
– Engine coolant capacity 45 Ltr
– Battery capacity 12v x 2, 180amo
– Flywheel housing SAE #2
– Flywheel SAE #11.5
– Fan type / diameter PUSHER 915 mm
– Type of mounting Skid
– Capacity of Separator Tank 165 Ltr3

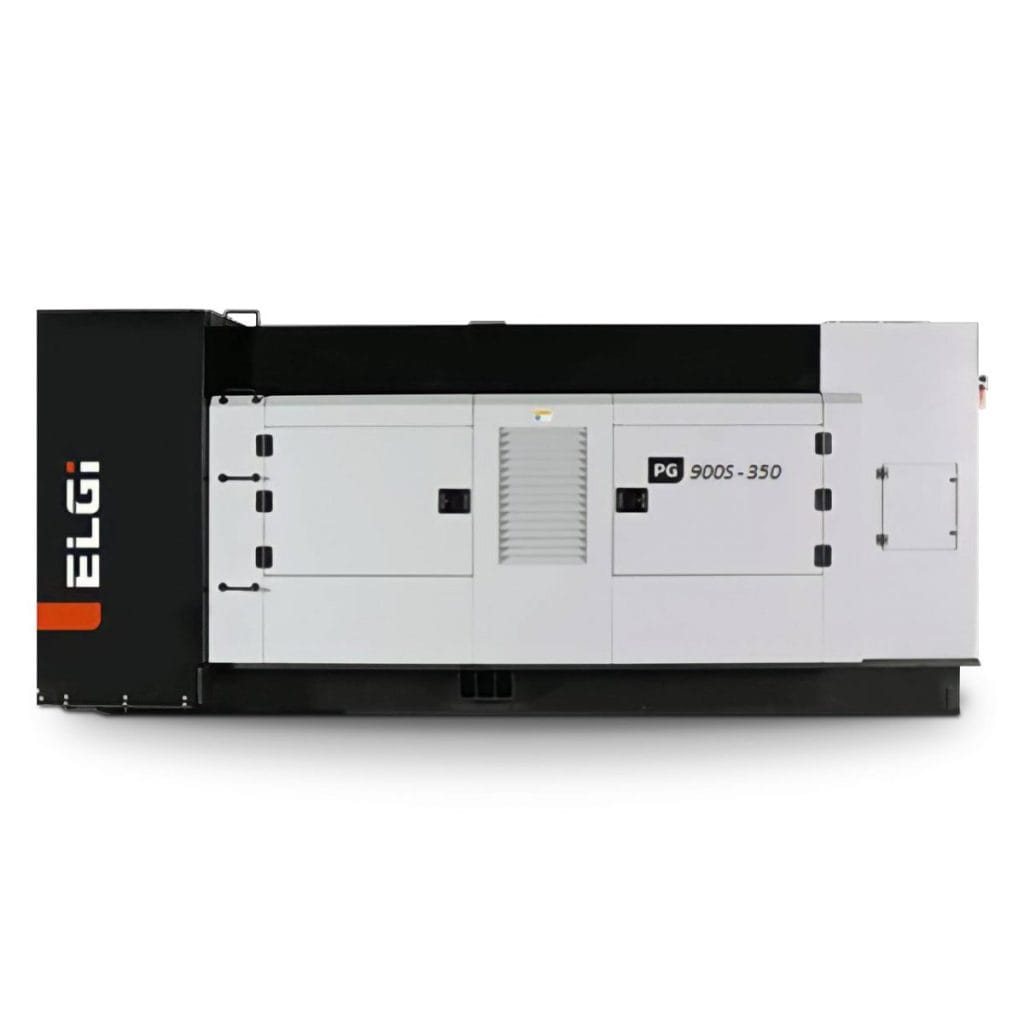

Elgi Compressors
500 – 1500 cfm / 175 – 400 psi

Energy efficient 2 stage ETA-V air ends

– Cummins reliability.
– International warranty
– 0-100% step-less capacity control system reduces fuel consumption
– PG-500S-175 (500/175) | Cummins 6BTA5.9
– PG-600S-230 (600/230) | Cummins 6CTA8.3
– PG-900S-350 (900/350) | Cummins NTA855C
– PG-1200S-350 (1200/350) | Cummins NTA855C
– PG-1500S-400 (1500/400) | Cummins KTTA19C

Elgi PG900S/350

-Cummins NTA855C Big Cam 430 hp
-Elgi two stage ETA profile air end
-Canopy enclosure 4.2 x 2.14 x 2.3m
-Nett weight 5,100 kg dry


-Brand new unit.
-Elgi and Cummins international warranties.
-Open module or enclosed units available on request.**
-Contact US now for more information or quotation.
